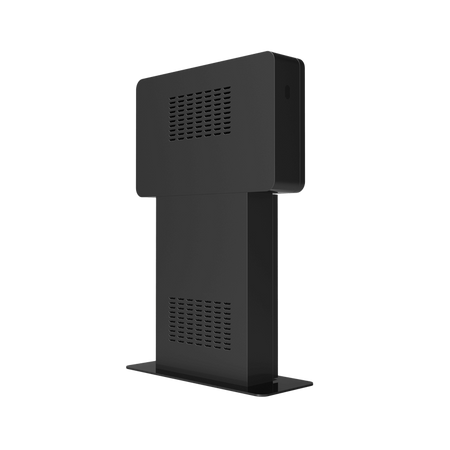

43 Inch Dynamic Transit Signage with Light Box
High-visibility 43" transit display with integrated light box for real-time public updates.
The 43 Inch Dynamic Transit Signage with Light Box is purpose-built for fast-paced transportation environments requiring 24/7 content clarity and urban visibility. Designed to enhance commuter experiences, this high-brightness LCD signage integrates a rear-illuminated light box for static advertising or transit maps, offering a hybrid communication platform for cities, terminals, and bus stops. The ruggedized metal housing ensures it performs flawlessly in diverse outdoor weather, while the slim profile saves space in high-traffic zones. Whether displaying bus schedules, emergency alerts, or promotional content, it delivers performance, durability, and clarity.
Key Features
📺 43-inch outdoor LCD screen with anti-glare coating and 2500 nits brightness
💡 Integrated light box module for static or backlit print media
☔ IP65-rated waterproof design with corrosion-resistant housing
🔌 Smart power management system for energy efficiency
🌡️ Built-in temperature control for reliable all-weather use
📅 Supports automated content scheduling and CMS compatibility
🔧 Easy access front maintenance panel for serviceability
🚏 Ideal for bus stops, train platforms, and intermodal hubs
Power in Numbers
50
Display Types
200
Partnerships
600
Installations
Model Number
OC43-H20-LB-SD07
Screen Size
43 inch
Specifications
Panel Type | Industrial-grade A+ LCD IPS Panel |
Resolution | 1920×1080 (FHD) |
Brightness | 2000+ nits |
OS Options | Windows, Android, Linux |
Connectivity | HDMI, USB, RJ-45, Wi-Fi, 4G/5G Module |
Enclosure | Cold-rolled metal sheet, Tempered glass |
Dimensions | 1900x1160x250 MM, Customizable |
Weight | 120 KG (for Reference) |
Mounting Options | Freestanding |
IP Rating | IP55, IP65 |
Heat Control | Air-cooling, Air-conditioner |
Operating Temperature | -35°C to 55°C |
Power Supply | AC 100-240V, 50/60Hz |
Power Consumption | 400W – 800W Due to heat-control system |
