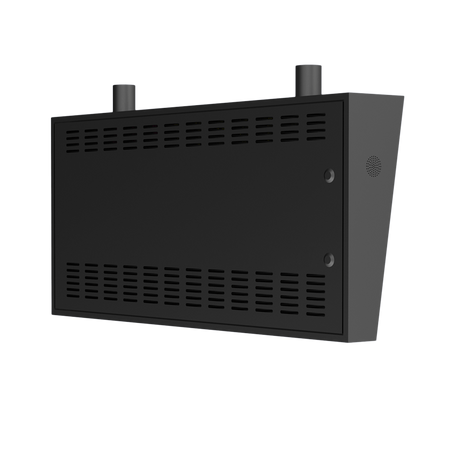

55+32 Inch Dual-screen Smart Transportation Displays
Dual-screen outdoor display tailored for transit hubs with dynamic content and real-time passenger communication.
The 55+32 Inch Dual-screen Smart Transportation Displays are purpose-built to enhance communication across modern transportation environments. Featuring a horizontal 55-inch main screen and a secondary 32-inch screen vertically mounted aside, this smart signage system supports diverse content delivery—ranging from route maps and scheduling updates to commercial media and emergency alerts. Engineered for harsh outdoor conditions, it features full HD resolution, anti-glare glass, and a weather-sealed aluminum enclosure. Designed for smart cities and mobility hubs, it seamlessly integrates with transit management software, ensuring real-time responsiveness and passenger engagement.
Whether used at bus terminals, train platforms, or metro entrances, this unit transforms public space into an efficient and interactive information zone.
Key Features
Dual-screen Configuration: Combines a 55-inch main screen with a 32-inch auxiliary display for expanded messaging.
Outdoor-rated Durability: IP65 housing with corrosion-resistant coating and wide operating temperature tolerance.
Sunlight Readable: High-brightness LCD panels with optical bonding and anti-reflective coatings.
Smart CMS Integration: Compatible with centralized transit content management systems.
Real-time Data Feed: Supports live updates such as ETA, service changes, or alerts via 4G/LTE or wired network.
Flexible Mounting: Pole, wall, or custom base-mount options for versatile installations.
Low Maintenance: Intelligent temperature control with fanless cooling for silent and efficient operation.
Energy Efficient: Scheduled dimming and power-saving modes reduce operational costs.
Power in Numbers
30
Display Types
70
Partnerships
300
Installations
Model Number
TBS-W55D32M06
Screen Size
55+32 Inch
Specifications
Panel Type | Industrial-grade A+ LCD IPS Panel |
Resolution | 1920×1080 (FHD) up to 3840×2160 (UHD) |
Brightness | 2500+ nits |
OS Options | Windows, Android, Linux |
Connectivity | DP, HDMI, USB, RJ-45, Wi-Fi, 4G/5G Module |
Enclosure | Cold-rolled metal sheet, Tempered glass |
Dimensions | 1844x874x240 MM, Customizable |
Weight | 148KG (For reference) |
Mounting Options | Wall-mount, Pole-mount, Freestanding |
IP Rating | IP55, IP65 |
Heat Control | Air-cooling, Air-conditioner |
Operating Temperature | -35°C to 55°C |
Power Supply | AC 100-240V, 50/60Hz |
Power Consumption | 700W-1.3kW Due to heat-control system |
