Advanced Thermal Management Strategies for High-Brightness Outdoor LCD Displays
Updated: Oct 4
High-brightness outdoor LCDs face a thermal challenge that indoor displays rarely encounter. The system must remove heat generated internally while also dealing with solar energy absorbed by the enclosure, cover glass and surrounding structure.
Effective thermal management strategies for high-brightness outdoor LCD displays therefore begin with the complete installation rather than with a fan, air conditioner or temperature specification alone. The appropriate cooling architecture depends on ambient conditions, solar exposure, display power, enclosure construction, installation geometry, duty cycle and the required environmental protection.
Where Heat Comes From in an Outdoor LCD System
An outdoor display can receive heat from several sources at the same time.
Direct sunlight can raise the temperature of the cover glass, enclosure surfaces and internal structural parts. Dark finishes and exposed metal surfaces can absorb significant solar energy, so the enclosure temperature may become noticeably higher than the surrounding air temperature.
The display itself also generates heat. The LED backlight, power supplies, display electronics, media players and control boards all contribute to the internal thermal load. Auxiliary components such as fans, heaters and controllers can add further heat even though they may be necessary for managing the operating environment.
For this reason, thermal design should be based on the complete heat load rather than ambient temperature alone.
Why High Brightness Increases the Thermal Challenge
Producing more light generally requires more electrical power from the backlight system, and that additional power contributes to internal heat generation.
At the same time, high-brightness displays are often installed in locations with strong solar exposure, which means the system can experience a high internal heat load and a high external solar load at the same time.
Optical and thermal engineering are therefore connected. Increasing luminance can support visibility, but it can also increase electrical consumption, heat generation and cooling demand.
Brightness should be selected together with optical performance, operating conditions and thermal capacity rather than treated as an isolated specification.
Thermal Management Strategies for High-Brightness Outdoor LCD Displays
There is no single cooling architecture that is automatically correct for every outdoor LCD.
Depending on the application, a system may use natural convection, forced-air circulation, filtered external-air cooling, a heat exchanger, air conditioning or another sealed or semi-sealed thermal approach.
The correct choice depends on the expected heat load and environmental conditions.
A cooling method should also be considered together with enclosure protection, service access, cabinet depth, noise, power consumption and maintenance requirements. A solution that works well in one installation may be unsuitable in another because the surrounding environment and mechanical constraints are different.
Internal Airflow Matters More Than Fan Quantity
Adding more fans does not necessarily create better thermal performance. The more important question is whether the airflow follows a deliberate path through the enclosure.
Poor airflow design can create localized hot spots, short-circuit paths and recirculation zones. It may also leave parts of the LCD or power electronics with inadequate cooling even when several fans are installed.
A good airflow design should move heat away from critical components toward an effective heat-rejection path. Intake, circulation and exhaust should work together rather than behave as separate components.

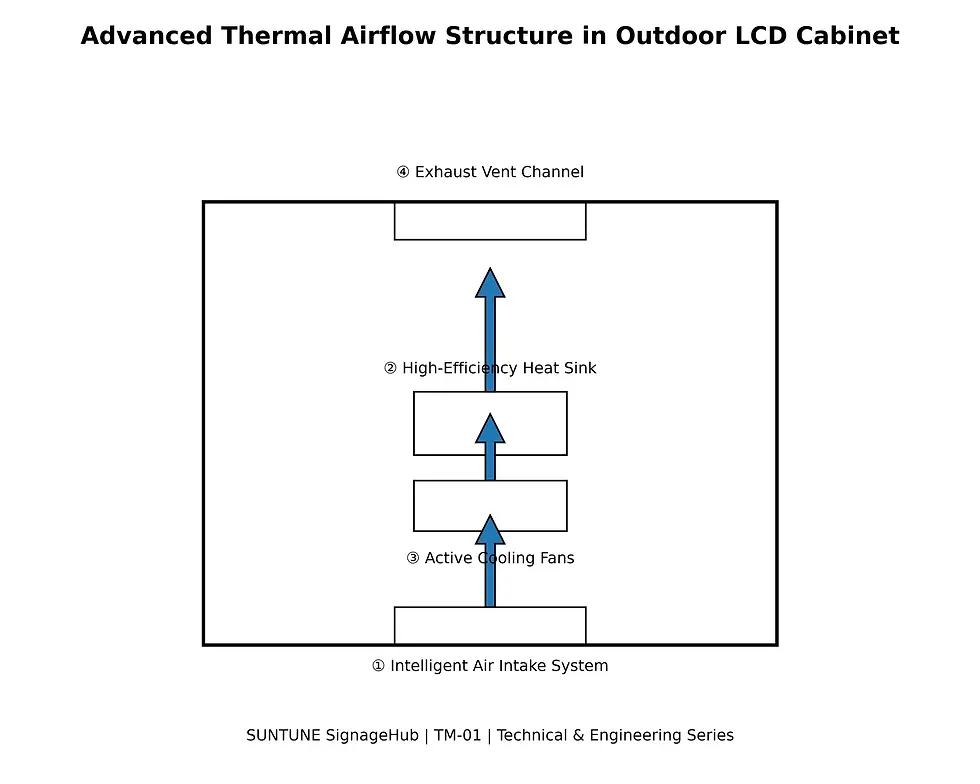

The revised airflow diagram in this article illustrates this principle visually: air enters through the intake, passes through the cooling path and heat-transfer components, and exits through the exhaust rather than circulating randomly inside the cabinet.
Internal Circulation and External Air Exchange Are Different
Internal circulation and external air exchange should not be treated as the same thing.
Internal fans can reduce temperature differences within the enclosure by moving air around the LCD and electronics, but circulation alone does not remove heat from the cabinet.
External-air cooling, by contrast, uses outside air to carry heat away. Its effectiveness depends on the outdoor temperature, humidity, contamination level, filtration and the resistance created by vents and filters.
Some systems instead transfer heat while limiting direct exchange between outdoor air and the electronics space. This can be useful where environmental contamination or ingress-protection requirements influence the architecture.
The appropriate approach depends on the project conditions and should be evaluated as part of the complete system.
Solar Radiation Must Be Included in Thermal Planning
Ambient temperature alone is not enough to describe outdoor thermal conditions.
A display operating in shade at a given air temperature can experience a very different thermal load from the same display under direct sunlight. Orientation, surrounding structures, enclosure finish and seasonal sun position can all affect the amount of solar energy absorbed by the system.
For this reason, solar load should be included in the thermal model from the beginning. It should not be treated as an afterthought once the cabinet and cooling method have already been selected.
Enclosure Design Influences Heat Transfer
The enclosure is not simply a protective shell. It is part of the thermal system.
Material selection, surface finish, internal structural layout, air-channel geometry, component spacing and available cabinet depth all influence how heat moves through the display.
A compact cabinet may require a very different cooling strategy from a deeper enclosure using the same LCD panel. Likewise, the position of vents, fans and heat-transfer components can determine whether the intended airflow actually reaches critical areas.
Mechanical and thermal design therefore need to be developed together.
Cooling Strategy and IP Protection Must Be Coordinated
Outdoor displays need both thermal control and environmental protection.
An open ventilation path may improve air exchange, but it can make protection against dust, rain, debris or insects more difficult. A highly sealed enclosure may simplify some ingress-control objectives, but it can make heat rejection more challenging.
Neither architecture is automatically better.
The right approach depends on the expected environmental exposure, thermal load, cooling method, maintenance plan and enclosure-protection requirement.
This is why cooling design and ingress protection should be reviewed as one system rather than as separate specifications.
Temperature Sensors and Control Logic
Temperature monitoring can help the cooling system respond to changing conditions.
Depending on the configuration, sensors may monitor enclosure air, the LCD area, power electronics, or intake and exhaust regions. The control system may then adjust fans or cooling equipment in response.
However, the presence of a temperature sensor does not by itself establish thermal performance. Sensor location, control thresholds, cooling capacity and the complete operating strategy must all be considered together.
A system with poorly placed sensors can give a misleading picture of the actual temperatures experienced by critical components.
Maintenance Is Part of Thermal Performance
Thermal performance can deteriorate over time if the intended cooling path becomes restricted.
For systems using external airflow, common maintenance risks include:
clogged filters
blocked intake or exhaust openings
dust accumulation
fan wear
debris around ventilation paths
Even a well-designed cooling system can lose effectiveness if the airflow path is not maintained.
Maintenance planning should therefore include inspection of filters, fans, vents and heat-transfer surfaces, not only the electronic components.
Thermal Testing Should Represent the Proposed Configuration
Thermal testing is most useful when it reflects the actual display architecture and operating conditions.
A meaningful evaluation should identify the enclosure configuration, installed LCD and electronics, cooling architecture, operating mode, ambient conditions, sensor locations and measurement duration. Where solar exposure is important, the method should also state how that load was represented.
A temperature reading without this context can be difficult to interpret.
Likewise, a successful demonstration under one condition should not automatically be treated as proof for every climate, season, enclosure variant or operating mode.
Avoid Universal Temperature Claims
Outdoor projects operate in very different climates, so broad claims such as “desert ready,” “extreme-temperature design” or “works in hot climates” are not enough to define a thermal requirement.
A better approach is to specify the actual project conditions: expected ambient range, solar exposure, operating schedule, orientation, enclosure type, installation restrictions and the evidence required.
The proposed thermal architecture can then be evaluated against those conditions.
This produces a more useful engineering discussion than selecting a cooling method from a marketing label.
What Buyers Should Provide for Thermal Review
A thermal review becomes much more meaningful when the project team can provide:
installation location or climate conditions
expected ambient-temperature range
direct-sun exposure
portrait or landscape orientation
operating hours
display size and brightness target
single-sided or double-sided construction
enclosure-depth limitations
ingress-protection requirements
noise restrictions
maintenance constraints
available electrical power
These inputs allow the supplier and integrator to assess the cooling architecture in the context of the actual installation.
Deeper Thermal Engineering Guidance
For the broader engineering framework covering solar load, internal heat generation, cooling architectures, airflow, controls, maintenance and project verification, read the Outdoor LCD Thermal Management guide.
Discuss Your Project
Planning a high-brightness outdoor LCD installation? Share the application, expected ambient conditions, solar exposure, operating schedule and non-confidential project requirements through Start Your Project.
The appropriate cooling architecture and supporting evidence should be confirmed for the actual configuration and installation conditions.
